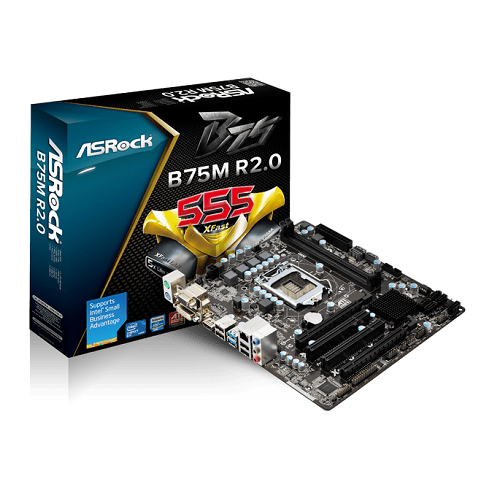

ASRock B75M R2.0 LGA1155/ Intel B75/ DDR3/ SATA3&USB3.0/ Quad CrossFireX/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: B75M R2.0
• CPU: LGA1155
  • Supports 2nd/ 3rd Generation Intel Core i7/ i5/ i3 Processors
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Hyper-Threading Technology
• Chipset: Intel B75
• Memory: 2x DDR3-2200(OC)/1600/1333/1066 DIMM Slots, Dual Channel, Non-ECC, Un-buffered, Max Capacity of 16GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI- Express 2.0 x16 Slot (runs at x4), 2x PCI Slots
• Multi-Graphics: Supports AMD Quad CrossFireX and CrossFireX Technology
• SATA: 3x SATA3 Ports, 5x SATA2 Ports
• Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC
• Video: Intel HD Graphics w/ Intel Ivy Bridge or Sandy Bridge CPU
• LAN: Realtek RTL8111E PCI-Express Gigabit Ethernet Controller
• Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 4x USB 3.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector
• Form Factor: MicroATX, 9.6 x 8.4 inch / 24.4 x 21.3 cm
