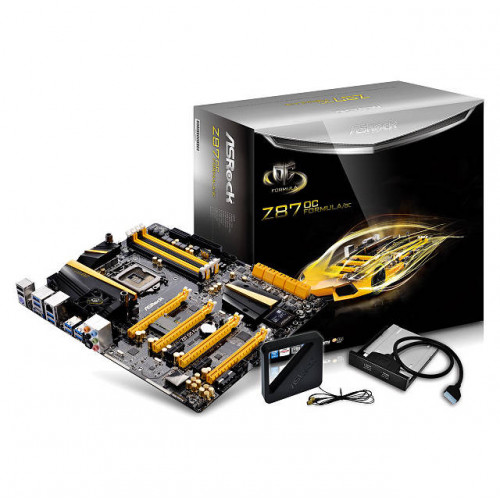

ASRock Z87 OC FORMULA/AC LGA1150/ Intel Z87/ DDR3/ Quad CrossFireX & Quad SLI/ SATA3&USB3.0/ WiFi/ A&GbE/ EATX Motherboard

Specifications

• Mfr Part Number: Z87 OC FORMULA/AC
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron/ Xeon Processors

  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Intel K-Series Unlocked CPU
  • Supports ASRock BCLK Full-range Overclocking
• Chipset: Intel Z87
• Memory: 4x DDR3-3000+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 3x PCI-Express 3.0 x16 Slots (run at x16 or x8/x8 or x8/x4/x4), 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots, 1x Mini PCI-Express Slot (for WiFi + BT Module)
• Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
• SATA: 10x SATA3 Ports, Six Support RAID 0, 1, 5, 10
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio
• LAN: Giga PHY Intel I217V Gigabit Ethernet Controller; 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.0 / 3.0
• Ports: 12x USB 3.0 Ports (8 rear, 4 via headers), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 2x HDMI Ports, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 2x 8pin 12V Power Connectors, 1x SLI/XFire Power Connector
• Form Factor: EATX
