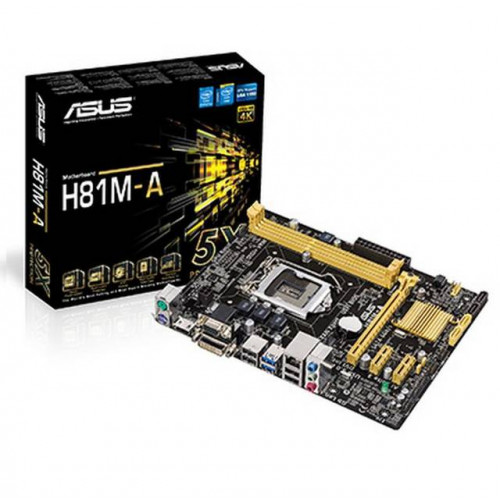

Asus H81M-A LGA1150/ Intel H81/ DDR3/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: H81M-A
• CPU: LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports Intel 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel H81
• Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB
• Slots: 1x PCI-Express x16 Slot, 2x PCI-Express 2.0 x1 Slots
• SATA: 2x SATA3 Ports, 2x SATA2 Ports
• Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
• LAN: Realtek 8111G Gigabit Ethernet Controller
• Ports: 2x USB 3.0/2.0 Ports, 8x USB 2.0 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: MicroATX, 8.9 x 6.9 inch / 22.6 x 17.5 cm
