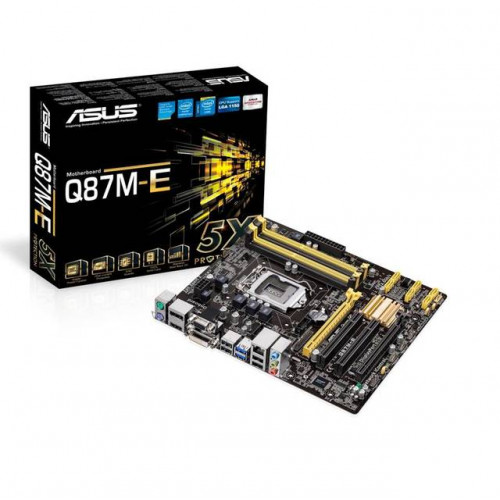

Asus Q87M-E/CSM LGA1150/ Intel Q87/ DDR3/ Quad CrossFireX/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: Q87M-E/CSM
• CPU : LGA1150
  • Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel Q87 Express
• Memory: 4x DDR3-1600/1333/1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0/2.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI Slots
• Multi-Graphics: Supports AMD Quad CrossFireX Technology
• SATA: 6x SATA3 Ports
• Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC
• LAN: Intel I217LM Gigabit Ethernet Controller

• Ports: 4x USB 3.0 Ports (2 rear, 2 at mid-board), 10x USB 2.0 Ports (4 rear, 6 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.6 x 8.8 inch / 24.4 x 22.4 cm
