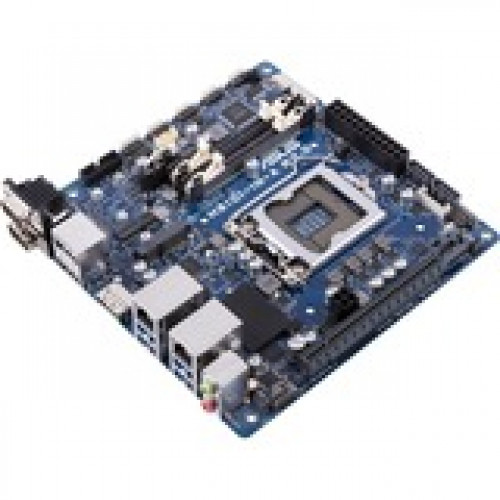

Asus H310I-IM-A R2.0 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 2 x RJ-45 - 4 x SATA Interfaces H310I-IM-A R2.0

Asus H310I-IM-A R2.0 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 32 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - 2 x RJ-45 - 4 x SATA Interfaces

8th Gen Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX motherboard with H310 chipset, two SO-DIMM slots, dual DisplayPort, HDMI, LVDS, two M.2 slots, PCIe x16 and Mini-PCIe Supports Intel® 8th Gen Core™ processors (LGA1151) with the Intel H310 chipset Two 260-pin SO-DIMM slots support up to 32GB DDR4 2400/2133 MHz SDRAM Supports dual display configurations with multiple interfaces, including dual DisplayPort, HDMI and LVDS Advanced I/O and connectivity features Seven years of longevity with extended product life cycles Wide temperature range endurance: 0-60°C ASUS H310I-IM-A R2.0 is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x16 slot, two M.2 sockets (E and M key) and Mini PCIe, ASUS H310I-IM-A R2.0 is an ideal choice for a wide range of embedded applications. As the world''s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H310
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Core i5, Core i7, Pentium, Celeron
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.2 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of mSATA Interfaces: 1
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Brand Compatibility: Intel
Country of Origin: China
