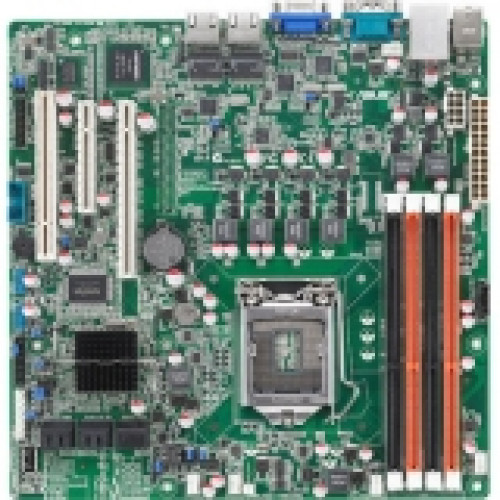

Asus P8B-MX Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 6 x SATA Interfaces - RoHS, WEEE

Asus P8B-MX Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 6 x SATA Interfaces - RoHS, WEEE Compliance

Bromolow Manageable & Compact Micro-ATX ServerboardP8B-MX is the 5th generation micro-ATX form factor UP serverboard designed based on up-to-dated Intel Bromolow platform. Featuring an Intel® C202 PCH chipset, with support of leading-edge architecture, dual Intel server class GbE and optional ASMB5-iKVM all these advanced features integrated the compact sized micro-ATX board makes the P8B-MX best candidate to fit in various appliance server.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C202
Total Processor Supported: 1
Processor Socket: Socket H2 LGA-1155
Processor Supported: Core i3, Xeon, Pentium, Celeron
64-bit Processing: Yes
Number of Memory Slots: 4
Memory Form Factor: UDIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Graphics Controller Memory: 16 MB
Graphics Memory Technology: VRAM
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Number of PCI Slots: 1
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
PS/2 Port: Yes
Number of PS/2 Ports: 1
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 5
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Power Supply Supported: ATX12V
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Certifications & Standards: US (FCC, CFR47 Part 15, Class B), Europe (CE, EN55022 & EN55024), C-Tick, BSMI
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
