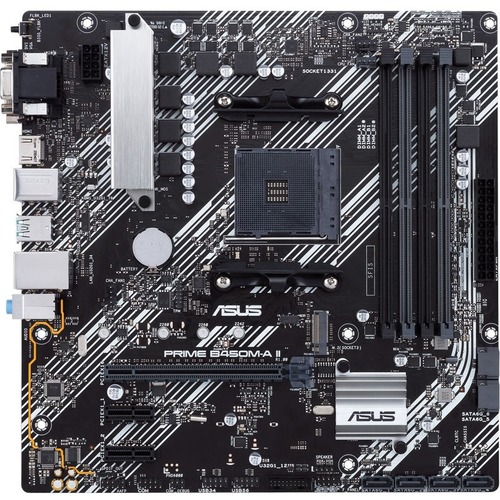

Asus Prime B450M-A II Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - HDMI - DVI - 1 x RJ-45 - 6 x SATA Interfaces PRIME B450M-A II

Asus Prime B450M-A II Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x USB 3.1 Port - HDMI - DVI - 1 x RJ-45 - 6 x SATA Interfaces

AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack™, and Aura Sync RGB lighting support Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware PRIME ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We''ve melded all the good stuff that''s packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity. Cool to the Core Prime B450M II series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsink and Thermal Pads A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance. Build on a Solid Foundation Prime B450M II motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. PCIe 3.0 M.2 (up to 32 Gbps) Achieve speed with onboard M.2 M.2 Slot supports up to 22110 and data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It''s the perfect choice for an operating system or application drive, providing fast access to data. Little Things Make a Big Difference Prime B450M II series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a unique personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you''ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left and Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: B450
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Athlon
Number of Memory Slots: 4
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4400 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3300 MHz, 3200 MHz, 3000 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 1, 0
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 2
VGA: Yes
HDMI: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.5"
Package Contents:

Prime B450M-A II Desktop Motherboard, Cables
2 x SATA 6Gb/s Cables
Miscellaneous
1 x I/O Shield, 1 x M.2 SSD Screw Package
Installation Media
1 x Support DVD
Documentation
1 x User Manual

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
