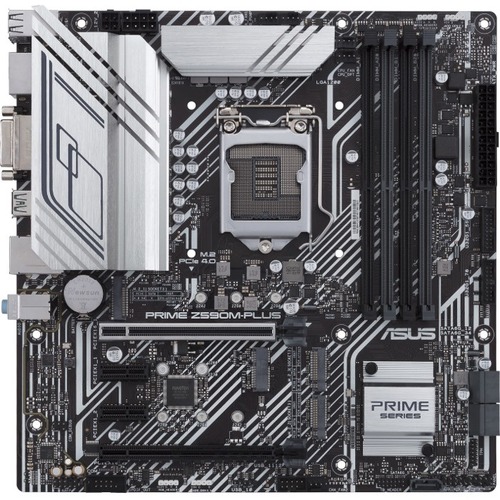

Asus Prime Z590M-PLUS Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory

Asus Prime Z590M-PLUS Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 5 x SATA Interfaces

Intel® Z590 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 9 DrMOS power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, Intel® 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: PCIe® 4.0, Intel® 1 Gb Ethernet , USB 3.2 Gen 2x2 Type-C®, Thunderbolt™ 4 header support PRIME ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Search FunctionQuickly and easily find the option or setting you need. ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends. Cool to the Core Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsinks and Thermal Pads Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Build on a Solid Foundation Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Robust Power Design Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime Z590M-PLUS is geared to cater to the demands of these high-core count CPUs. ProCool Connector Proprietary connector augment the motherboard''s link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z590
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 5133 MHz, 5000 MHz, 4800 MHz, 4700 MHz, 4600 MHz, 4500 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 5
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Package Contents:

Prime Z590M-PLUS Desktop Motherboard, 2 x SATA 6Gb/s Cables, 1 x I/O Shield, 2 x M.2 SSD Screw Packages, 1 x Support DVD, 1 x User manual

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
