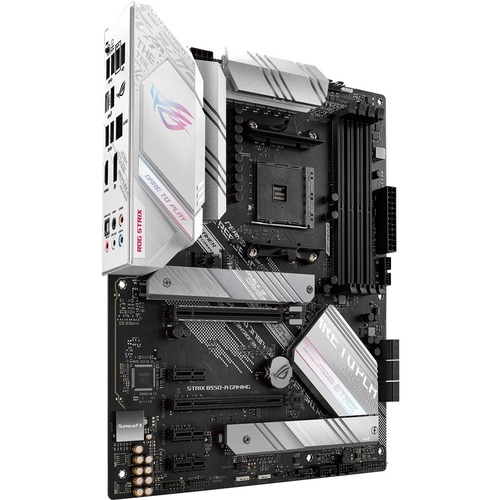

Asus ROG Strix B550-A GAMING Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces ROG STRIX B550-A GAMING

Asus ROG Strix B550-A GAMING Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces

AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio B550-A GAMING Designed for those seeking to get the most out of their build, ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0 connectivity. Offering robust power delivery and effective cooling, ROG Strix B550-A Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. As an added bonus, outstanding performance is complemented by a stunning silver-and-white finish and cyberpunk-inspired aesthetics that present a standout look. Advance Your Gaming Immersion ROG Strix B550-A Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. StoragePCIe 4.0-Ready ROG Strix B550-A Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost. Networking Intel 2.5 Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Audio SupremeFX Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-A Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets. AI Noise-Canceling Microphone AI noise-canceling microphone software is exclusively featured on ROG Strix motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 3466 MHz, 3600 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4400 MHz, 4600 MHz, 4800 MHz, 5100 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 10, 1
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

Strix B550-A GAMING Desktop Motherboard, Cables
1 x Addressable RGB extension cable, 4 x SATA 6Gb/s Cables
Miscellaneous
1 x Cable Ties Pack, 1 x M.2 Rubber Package, 1 x M.2 SSD Screw Package, 1 x ROG Key Chain, 1 x ROG STRIX Sticker, 1 x ROG STRIX Thank You Card
Installation Media
1 x Supporting DVD
Documentation
1 x User Manual

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
