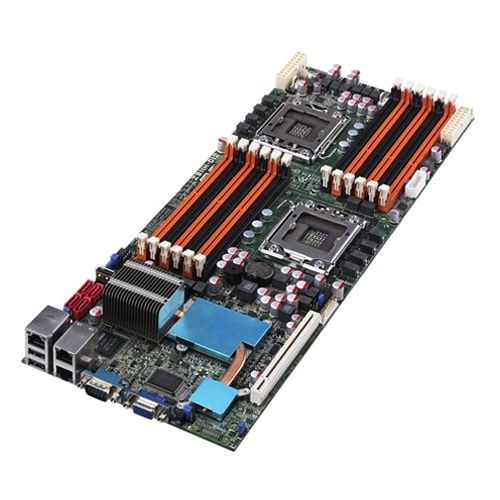

Asus Z8NH-D12 Server Motherboard - Intel Chipset - Socket B LGA-1366 - 96 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 12 x Memory Slots - Gigabit Ethernet - 6, 4 x SATA Interfaces - REACH, WEEE Compliance Z8NH-

Asus Z8NH-D12 Server Motherboard - Intel Chipset - Socket B LGA-1366 - 96 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 12 x Memory Slots - Gigabit Ethernet - 6, 4 x SATA Interfaces - REACH, WEEE Compliance

Z8NH-D12 is quite slim with its 6.3" x 16.7" form factor, which is easy for fitting two serverboards in one rack-mount chassis. With Intel Xeon 5500 series processor, DDR3 memory and ASUS innovative features such as EPU and ASMB4-iKVM, Z8NH-D12 still offers outstanding performance to customers.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: 5500
Total Processor Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported: Xeon Hexa-core, Xeon Quad-core, Xeon Dual-Core
Number of Memory Slots: 12
Maximum Memory Supported: 96 GB
Memory Standard: DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1066 MHz, 800 MHz
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Graphics Controller Memory: 8 MB
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 3
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of SATA Interfaces: 6, 4
Total Number of Onboard USB Ports: 1
Number of Onboard USB 2.0 Ports: 1
Onboard LEDs Header: Yes
Width: 6.3"
Depth: 16.7"
Package Contents: Z8NH-D12 Server Motherboard, 1 x ASUS Mainboard Support CD, 1 x User's Guide
Environmentally Friendly: Yes
Environmental Certification: REACH, WEEE
