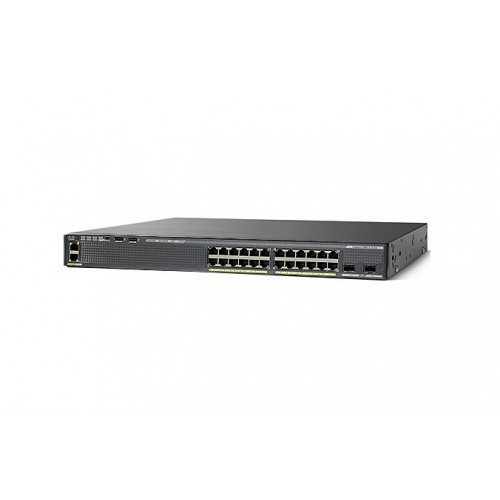

CISCO Catalyst 2960xr-24td-i Managed L3 Switch 24 Ethernet Ports And 2 Sfp+ Ports WS-C2960XR-24TD-I

CISCO Catalyst 2960xr-24td-i Managed L3 Switch 24 Ethernet Ports And 2 Sfp+ Ports WS-C2960XR-24TD-I
Brand: Cisco
Part Number: WS-C2960XR-24TD-I
MSRP: $1,017.99
Availability: 10 or more
Condition: Refurbished
Price: $847.80
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Cisco - Catalyst 2960xr-24td-i Managed L3 Switch - 24 Ethernet Ports & 2 Sfp+ Ports (ws-c2960xr-24td-i).

Key Features :

  • Device Type : Switch - 24 Ports - L3 - Managed - Stackable
  • Enclosure Type : Desktop, Rack-mountable - 1u
  • Ports : 24 X 10/100/1000 + 2 X Sfp+
  • Performance : Switching Capacity : 216 Gbps Forwarding Performance : 95.2 Mpps
  • Capacity : Virtual Interfaces (vlans) : 1023
  • Jumbo Frame Support : 9216
  • Max Units In A Stack : 8
  • Routing Protocol : Ospf, Rip-1, Rip-2, Hsrp, Vrrp, Pim-sm, Pim-dm, Pim-ssm, Policy-based Routing (pbr), Ripng
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Cli
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Layer 2 Switching, Auto-negotiation, Arp Support, Cisco Fast Etherchannel, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Dynamic Trunking Protocol (dtp) Support, Port Aggregation Protocol (pagp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Radius Support, Mld Snooping, Dynamic Arp Inspection (dai), Uni-directional Link Detection (udld), Shaped Round Robin (srr), Link Aggregation Control Protocol (lacp), Remote Switch Port Analyzer (rspan), Layer 3 Load Balancing, Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Multicast Vlan Registration (mvr), Strict Priority Queuing (spq), Class Of Service (cos)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.3az
  • Processor : 1 X Arm : 600 Mhz
  • Ram : 512 Mb
  • Flash Memory : 128 Mb
  • Status Indicators : Port Status, Link Activity, Port Transmission Speed, Port Duplex Mode, System

    Expansion / Connectivity :
  • Interfaces : 24 X 10base-t/100base-tx/1000base-t - Rj-45 2 X Sfp+ 1 X Usb - Type A 1 X Usb - Type B 1 X Console - Rj-45 1 X Management (lan) - Rj-45

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Redundancy : Yes
  • Power Redundancy Scheme : 1+1
  • Power Provided : 250 Watt
  • Voltage Required : Ac 120/230 V ( 50/60 Hz )
