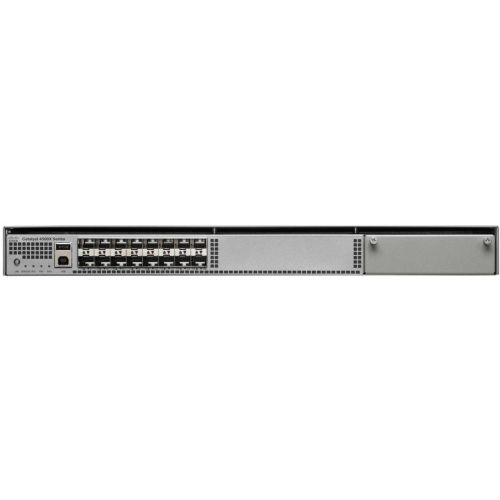

Cisco Catalyst 4500-X Ethernet Switch - Manageable - Refurbished - 2 Layer Supported - Desktop - Lifetime Limited Warranty - RoHS-5 Compliance WS-C4500X16SFP+-RF

Cisco Catalyst 4500-X Ethernet Switch - Manageable - Refurbished - 2 Layer Supported - Desktop - Lifetime Limited Warranty - RoHS-5 Compliance

Cisco Catalyst 4500-X Series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. Both the 32- and 16-port versions can be configured with optional network modules and offer similar features. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable.

Technical Specifications:
Token Ring Port: No
LRE Port: No
Management Port: Yes
USB: Yes
Stack Port: No
Port/Expansion Slot Details: 16 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X
Number of Total Expansion Slots: 17
Expansion Slot Type: SFP+, Uplink Module
Shared SFP Slot: No
Number of SFP+ Slots: 16
Layer Supported: 2
Manageable: Yes
Management: RMON I, II, VLAN, QoS, DHCP
Standard Memory: 4 GB
Memory Technology: DDR2 SDRAM
Flash Memory: 2 GB
Memory Card Supported: SD
MTBF: 209330 Hour
PoE (RJ-45) Port: No
Input Voltage: 120 V AC, 230 V AC
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Form Factor: Desktop
Certifications & Standards: CE marking

IEEE Standards:

802.3, 802.3ae, 802.1D, 802.1w, 802.1s, 802.3ad, 802.1p, 802.1Q, 802.1X

EMI & EMC Compliance:

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, EN55024, CISPR24, EN300386, KN24

Safety Certifications:

UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
