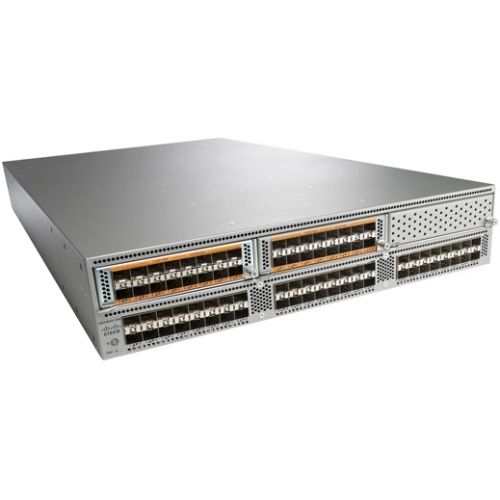

Cisco Nexus 5596UP Switch - 48 Ports - Manageable - Refurbished - 3 Layer Supported - Twisted Pair - 2U High - Rack-mountable - 1 Year Limited Warranty - RoHS-6 Compliance N5K-C5596UP-FA-RF

Cisco Nexus 5596UP Switch - 48 Ports - Manageable - Refurbished - 3 Layer Supported - Twisted Pair - 2U High - Rack-mountable - 1 Year Limited Warranty - RoHS-6 Compliance

Today''s data centers are increasingly filled with dense rack-mount and blade servers that host powerful multicore processors. The rapid increase in in-rack computing density and the increasing use of virtualization software combine to accelerate the demand for 10 Gigabit Ethernet and consolidated I/O: applications for which the Cisco Nexus® 5000 Series Switches are an excellent match. With low latency and choice of front-to-back or back-to-front cooling, copper or fiber access ports, and rear-facing data ports, the CiscoNexus 5000 Series is designed for a broad range of physical, virtual, storage access, and high-performance computing environments, thus giving customers the flexibility to meet and scale their data center requirements in a gradual manner and at a pace that aligns with their business objectives.

Technical Specifications:
Total Number of Network Ports: 48
Token Ring Port: No
LRE Port: No
Uplink Port: No
Bypass: No
Modular: No
Management Port: Yes
USB: No
Stack Port: No
Number of Network (RJ-45) Ports: 48
Media Type Supported: Twisted Pair
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-T
Number of Total Expansion Slots: 3
Layer Supported: 3
Manageable: Yes
Management: VLAN, QoS, SNMP v1, v2c, Web Based Management, DHCP, RMON, MIB, Telnet, Syslog
PoE (RJ-45) Port: No
Input Voltage: 110 V AC, 220 V AC
Power Source: Power Supply
Redundant Power Supply Supported: No
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5"
Width: 17.3"
Depth: 29.5"
Weight (Approximate): 47.50 lb
Package Contents: Nexus 5596UP Switch, 2 x Power Supplies, 4 x Fan Modules
Certifications & Standards:

IEEE Standards:

802.1D, 802.1p, 802.1Q, 802.1Qaz, 802.1Qbb, 802.1s, 802.1w, 802.3, 802.3ad, 802.3ae

Safety:

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943

Emissions:

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

Immunity:

EN55024, CISPR24, EN300386, KN 61000-4 series
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
