D-Link Gigabit Interface Converter - 1 x 1000Base-LX DEM-310GT

D-Link Gigabit Interface Converter - 1 x 1000Base-LX

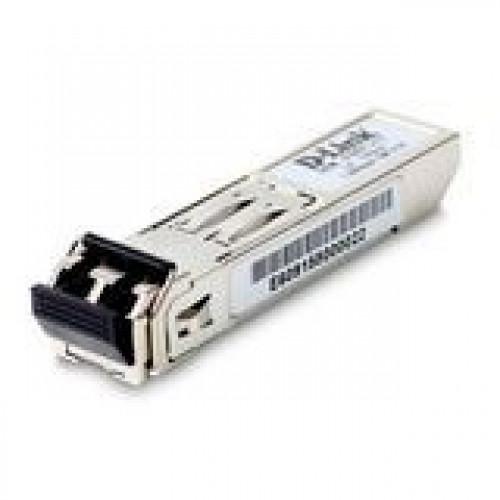

The DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability.

Technical Specifications:
Application/Usage: Data Networking, Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Standard: 62.5/125 µm, 50/125 µm, 9/125 µm
Fiber Mode Supported: Multi-mode, Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-LX
Maximum Distance Supported: 1804.46 ft
Maximum Data Transfer Rate: 1.25
Form Factor: Hot-pluggable
Height: 2.3"
Width: 1.2"
Depth: 0.5"
Additional Information: Optical Receiver Sensitivity: -20dBm (Max), Wavelength: 1310nm
Compatibility:

DGS-1210-08P, DGS-1210-10, DGS-1210-10P, DGS-1210-20, DGS-1210-24P, DGS-1210-28, DGS-1210-28MP, DGS-1210-28P, DGS-1210-48, DGS-1210-52, DGS-1210-52MP, DGS-1210-52P

Country of Origin: China
