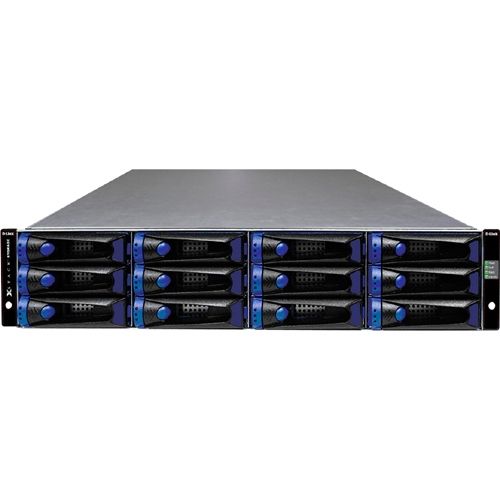

D-Link xStack DSN-5110-10 Hard Drive Array - 24 TB Supported HDD Capacity - RAID Supported 0, 1, 5, 10, 1, 1+0, 5 - 12 x Total Bays - Gigabit Ethernet - Network (RJ-45) - 2U - Rack-mountable - RoHS Compliance DSN-5110-10

D-Link xStack DSN-5110-10 Hard Drive Array - 24 TB Supported HDD Capacity - RAID Supported 0, 1, 5, 10, 1, 1+0, 5 - 12 x Total Bays - Gigabit Ethernet - Network (RJ-45) - 2U - Rack-mountable - RoHS Compliance

D-Link''s DSN-5110-10 iSCSI SAN array is a highly available, data center-class network storage solution in a 2U rackmount form factor, ideal for small to medium enterprises. The heart of the DSN-5110-10 is a powerful 10Gbit iSCSI System-on-a-Chip (SoC) capable of handling over 80,000 I/Os per second. The DSN-5110-10 currently supports 24TB of raw capacity using 2TB drives (and even greater capacity as larger disk drives become available) and overall scalability to 96TB. The DSN-5110-10 can be easily implemented as nearline or primary storage.

Technical Specifications:
Total Hard Drive Capacity Supported: 24 TB
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 12
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10, 1, 1+0, 5
Network (RJ-45): Yes
Protocols: TCP/IP, iSCSI
Input Voltage: 110 V AC, 220 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 430 W
Redundant Power Supply: Yes
Height: 3.5"
Width: 17.6"
Depth: 19.5"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 60 lb
Environmentally Friendly: Yes
Environmental Certification: RoHS
