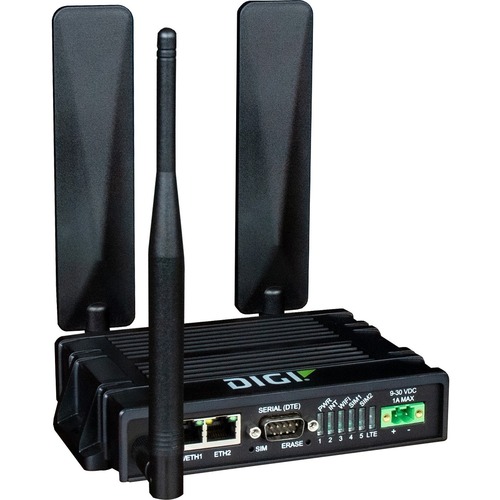

Digi IX20 IEEE 802.11ac 2 SIM Cellular, Ethernet Modem/Wireless Router - 4G - GSM 850, GSM 900, GSM 1800, GSM 1900 - EDGE, GPRS, LTE - 2.40 GHz ISM Band - 5 GHz UNII Band - 3 x Antenna(3 x External) - 2 x Network Port - 1 x Broadband Port - VPN Supported

Digi IX20 IEEE 802.11ac 2 SIM Cellular, Ethernet Modem/Wireless Router - 4G - GSM 850, GSM 900, GSM 1800, GSM 1900 - EDGE, GPRS, LTE - 2.40 GHz ISM Band - 5 GHz UNII Band - 3 x Antenna(3 x External) - 2 x Network Port - 1 x Broadband Port - VPN Supported - DIN Rail Mountable

Digi IX20 is a full-featured cellular router that can scale from basic connectivity applications to industrial-class routing and security solutions. Its flexible power and connectivity options make it a versatile choice for use in industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions. The high-performance architecture of the Digi IX20 router provides primary and backup WWAN connectivity over software selectable multi-carrier LTE. Digi IX20 supports software features for advanced security (stateful firewall, MAC filtering and VPN), redundancy (Digi SureLink®) and management (SNMP, event logging, analyzer trace and QOS), enabling it to be used in PCI or NERC-CIP compliant applications.Digi IX20 can be managed with Digi Remote Manager®, a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support for hundreds or even thousands of remote Digi and third-party devices. Digi Remote Manager lets you evaluate, update and configure your Digi enterprise routers and gateways - and the health of your network - at scale, after deployment.The Digi IX20 family of routers has a single part number, which simplifies inventory control for global distribution and deployment. In addition, Digi IX20 is designed for Digi CORE® plug-in LTE modems that can be changed out or upgraded without replacing the entire router.

Technical Specifications:
Wi-Fi Generation: Wi-Fi 5
Broadband Transmission Technology: Cellular, Ethernet
Wireless LAN Standard: IEEE 802.11ac
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 4G
Cellular Network Supported: GSM 850, GSM 900, GSM 1800, GSM 1900
Cellular Data Connectivity Technology: EDGE, GPRS, LTE
Total Number of Antennas: 3
Number of External Antennas: 3
Number of Network (RJ-45) Ports: 2
Number of Broadband (RJ-45) Ports: 1
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Mini
Form Factor: DIN Rail Mountable
Height: 1.4"
Width: 6.4"
Depth: 4.2"
Weight (Approximate): 1.40 lb
Package Contents:

Rugged, Secure LTE Router, DIN Rail Clip, Power Supply, 2 x Cellular antenna, Wi-Fi Antenna, Ethernet Cable

Environmentally Friendly: Yes
Environmental Certification: RoHS 3
