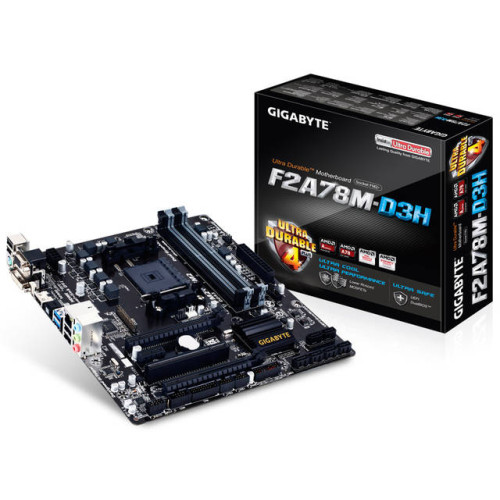

GIGABYTE GA-F2A78M-D3H Socket FM2+/ AMD A78/ DDR3/ 2-Way CrossFireX/ SATA3&USB3.0/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: GA-F2A78M-D3H
• CPU: Socket FM2+
  • Supports AMD A Series Processors
  • Supports AMD Athlon Series Processors
• Chipset: AMD A78
• Memory: 4x DDR3-2400(OC)/ 2133/ 1866/ 1600/ 1333 DIMM Slots, Dual Channel, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
• Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 10 and JBOD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• Video: Integrated Graphics w/ Maximum Shared Memory of 2GB
• LAN: Realtek Gigabit Ethernet Controller
• Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: MicroATX, 24.4 x 24.4 cm
