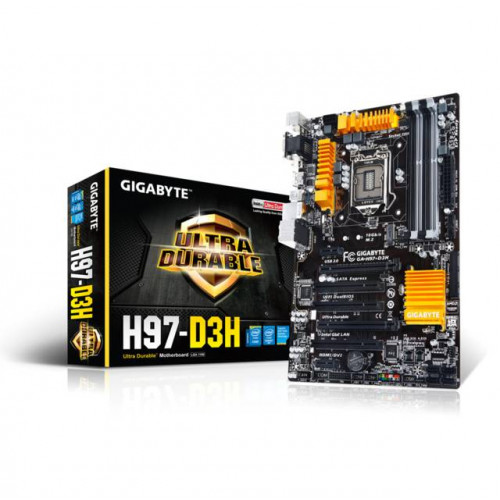

GIGABYTE GA-H97-D3H LGA1150/ Intel H97/ DDR3/ CrossFireX/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: GA-H97-D3H
• CPU: LGA1150
  • Supports 4th/5th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel H97 Express
• Memory: 4x DDR3-1600/1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots, 3x PCI Slots
• Multi-Graphics: Supports AMD CrossFireX Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA Express Port
  • M.2: 1x M.2 Port (type 2242/ 2260/ 2280), Support SATA & PCI-Express SSD
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC
• LAN: Intel Gigabit Ethernet Controller
• Ports: 6x USB 3.0/2.0 Ports (4 rear, 2 via header), 8x USB 2.0/1.1 Ports (2 rear, 6 via headers), 1x PS/2 Keyboad/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 21.4 cm
