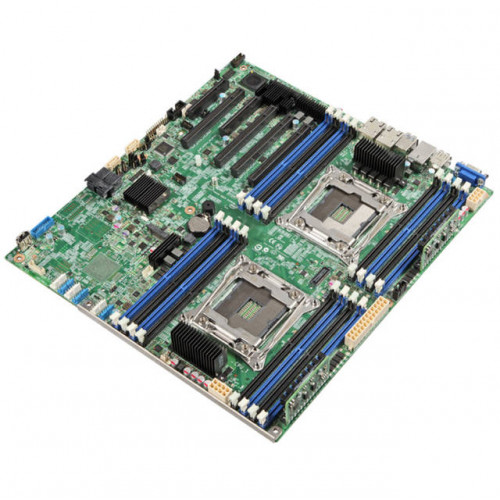

Intel DBS2600CW2 Dual LGA2011-v3/ Intel C610/ DDR4/ SATA3&USB3.0/ M.2/ V&2GbE/ SSI EEB Server Motherboard

Specifications

• Mfr Part Number: DBS2600CW2
• CPU: Dual LGA2011-v3
  • Support one or two Intel Xeon E5-2600 v3 Processors
  • Support up to 145W TDP
• Chipset: Intel C610
• Memory: 16x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Eight Channel, ECC/REG, Load Reduced, Max Capacity of 2TB
• Slots: 4x PCI-Express 3.0 x16 Slots, 1x PCI-Express 2.0 x4 Slot, 1x PCI-Express 3.0 x8 Slot
• Storage:
  • SATA: 10x SATA3 Ports (eight from two Mini-SAS HD Connectors), Support RAID 0, 1, 10 (ESRT2)
  • M.2: 1x M.2/NGFF Port
• Video: Integrated 2D Video Graphics w/ 16MB DDR3 Memory
• LAN: Integrated Dual Intel i350 Gigabit Ethernet Controllers
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 3x USB 2.0 Ports (2 rear, 1 Type A), 1x VGA Port, 2x RJ45 LAN Ports, 1x Delicated Management LAN Port
• Form Factor: SSI EEB, 12.0 x 13.0 inch
