Home » Brand » Juniper » Juniper ACX2200 Router - 8 Ports - Management Port - 8 Slots - 10 Gigabit Ethernet - Redundant Power Supply - 1U - Rack-mountable ACX2200-AC

Juniper ACX2200 Router - 8 Ports - Management Port - 8 Slots - 10 Gigabit Ethernet - Redundant Power Supply - 1U - Rack-mountable ACX2200-AC

Juniper ACX2200 Router - 8 Ports - Management Port - 8 Slots - 10 Gigabit Ethernet - Redundant Power Supply - 1U - Rack-mountable ACX2200-AC
Brand: Juniper
Part Number: ACX2200-AC
Availability: 10 or more
Condition: New
Price: Almost Gone - Email for Pricing
Qty:     - OR -   Add to Wish List
Add to Compare
ACX2200 Router

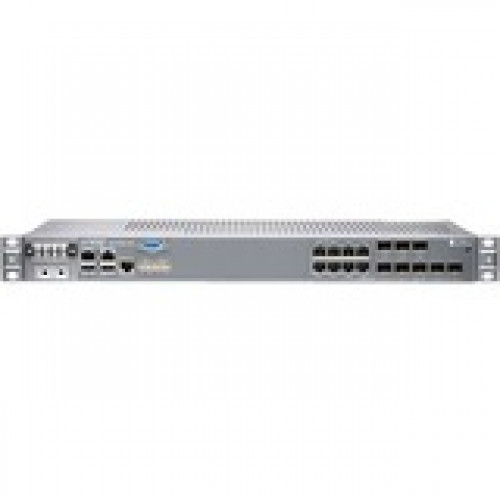

The compact, Ethernet only environmentally-hardened ACX2200 router with fanless passive cooling has a fixed port configuration that includes four copper 10/100/1000Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.

A built-in service engine makes the ACX2200 fully customizable and future-proof for LTE-A and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.
Product Type Router
Form Factor Rack-mountable
Token Ring Port No
Management Port Yes
USB Yes
Number of Total Expansion Slots 8
Expansion Slot Type SFP, SFP+
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Redundant Power Supply Yes
Compatible Rack Unit 1U
Height 1.8"
Width 17.5"
Depth 9.4"
Weight (Approximate) 8.30 lb
Limited Warranty 1 Year
Green Compliant Yes
Green Compliance Certificate/Authority REACH, RoHS, WEEE
Number of Network (RJ-45) Ports 8
Certifications & Standards Safety:
  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1 - CB Scheme
  • EN 60825-1
EMC:
  • AS/NZS CISPR22 Class A
  • EN55022 Class A
  • VCCI Class B
  • FCC Part 15 Class A
Immunity:
  • EN-61000-3-2 Power Line Harmonics
  • EN-61000-3-3 Voltage Fluctuations and Flicker
  • EN-61000-4-2 ESD
  • EN-61000-4-3 Radiated Immunity
  • EN-61000-4-4 EFT
  • EN-61000-4-5 Surge
  • EN-61000-4-6 Low Frequency Common Immunity
  • EN-61000-4-11 Voltage Dips and Sags
Total Number of Ports 8
Network Technology 10/100/1000Base-T, 10GBase-X, 1000Base-X
Ethernet Technology 10 Gigabit Ethernet
Powerline No
Serial V.35 Interface No
