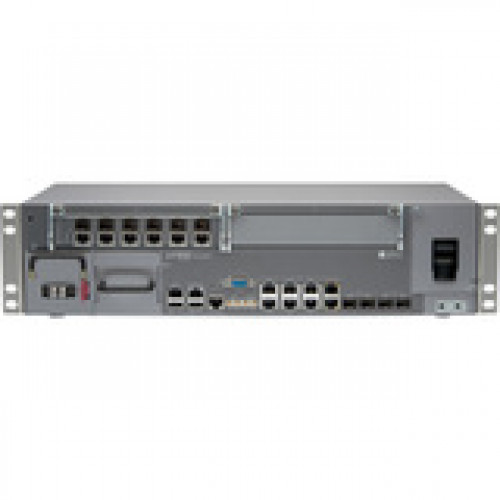

Juniper ACX4000 Universal Access Router - 8 Ports - Management Port - PoE Ports - 6 Slots - 2U - Rack-mountable CHAS-ACX4000-S

Juniper ACX4000 Universal Access Router - 8 Ports - Management Port - PoE Ports - 6 Slots - 2U - Rack-mountable CHAS-ACX4000-S
Brand: Juniper
Part Number: CHAS-ACX4000-S
Availability: 10 or more
Condition: New
Price: Almost Gone - Email for Pricing
Qty:     - OR -   Add to Wish List
Add to Compare
ACX4000 Universal Access Router

The ACX4000 platform for the Universal Access solution is an environmentally hardened, actively cooled, 2.5 RU modular, system that includes TDM (T1/E1, CHOC3/STM-1) ports, combination copper/fiber GbE ports, and 10GbE SFP+ interfaces, to provide a versatile access platform.

The ACX4000 is one of a family of next generation access routers that addresses the new network imperatives with an industry-leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
Product Type Router Chassis
Form Factor Rack-mountable
Token Ring Port No
Management Port Yes
USB No
Number of Total Expansion Slots 6
Expansion Slot Type SFP+, SFP (mini-GBIC)
PoE (RJ-45) Port Yes
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Compatible Rack Unit 2U
Height 4.4"
Width 17.5"
Depth 9.3"
Weight (Approximate) 23.80 lb
Limited Warranty 1 Year
Number of Network (RJ-45) Ports 8
Certifications & Standards

Safety:

  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1 - CB Scheme
  • EN 60825-1

EMC:

  • AS/NZS CISPR22 Class A
  • EN55022 Class A
  • VCCI Class B
  • FCC Part 15 Class A

Immunity:

  • EN-61000-3-2 Power Line Harmonics
  • EN-61000-3-3 Voltage Fluctuations and Flicker
  • EN-61000-4-3 Radiated Immunity
  • EN-61000-4-4 EFT
  • EN-61000-4-5 Surge
  • EN-61000-4-6 Low Frequency Common Immunity
  • EN-61000-4-11 Voltage Dips and Sags

ETSI:

  • EN300386-2
  • EN 300 019-2-1 (2000) - Storage, Class T1.2
  • EN 300 019-2-2 (1999) - Transportation, Class T2.3
  • EN 300 019-2-3 (2003) - Stationary Use at Weather-protected Locations, Class T3.2
  • EN 300 019-2-4 (2003) - Stationary Use at Non-weather Protected Locations, Class 4.2H
  • ETS 300753 (1997) - Acoustic Noise Emitted by Telecom
Total Number of Ports 8
Powerline No
Serial V.35 Interface No
