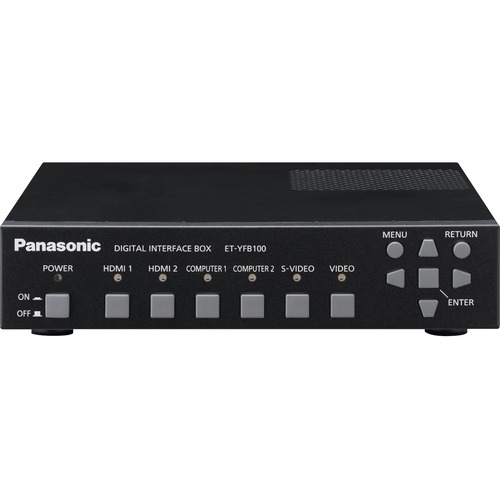

Panasonic Digital Interface Box - Simple AV Transmission System - 4 Input Device - 328.08 ft Range - 2 x Network (RJ-45) - 2 x HDMI In - 2 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e ET-YFB100G

Panasonic Digital Interface Box - Simple AV Transmission System - 4 Input Device - 328.08 ft Range - 2 x Network (RJ-45) - 2 x HDMI In - 2 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e ET-YFB100G
Brand: Panasonic
Part Number: ET-YFB100G
MSRP: $1,322.99
Availability: 10 or more
Condition: New
Price: $1,102.39
Qty:     - OR -   Add to Wish List
Add to Compare
Panasonic Digital Interface Box - Simple AV Transmission System - 4 Input Device - 328.08 ft Range - 2 x Network (RJ-45) - 2 x HDMI In - 2 x VGA In - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable. By combining the ET-YFB100G with a DIGITAL LINK-ready projector, video, audio and control signals can be transmitted over a single cable. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations. Transmits Digital Signals with a Single CableEquipped with a DIGITAL LINK output terminal. Allows transmission of HDMI, uncompressed HD digital video,audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.Abundant input terminals, including two sets of HDMI and RGB inputs.A separate audio output enables sound to be output when the projector power is turned off.ET-YFB100G input can be selected with the remote control of a Panasonic projector with DIGITAL LINK compatibility. Outputting High-Quality Images in Their Optimal FormDigital transmission allows clear image and sound quality without any degradation even over long distances.Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images.PC signals are automatically resized and output in the optimal resolution to match the projector panel resolution.The Auto Setup function automatically distinguishes the input signal and adjusts it to output the optimal angle of view.3D video format transmission is supported (Pass Through mode only)


Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 4
Maximum Operating Distance: 328.08 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
HDMI In: Yes
VGA In: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 2
Number of VGA Inputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Transmitter Height: 1.73"
Transmitter Width: 8.27"
Transmitter Depth: 98.43"
Transmitter Weight (Approximate): 2.54 lb
Package Contents:
    Digital Interface Box - Simple AV Transmission System, 1 x AC Adapter, 3 x Power Cord 2m, 1 x AC Power Cord Holder, 2 x Mounting Brackets for Rack or Countertop Installation, 1 x Mounting Bracket for Rack Installation, 6 x Countersunk Screws, 4 x Legs, 4 x Screws for Installing Legs
