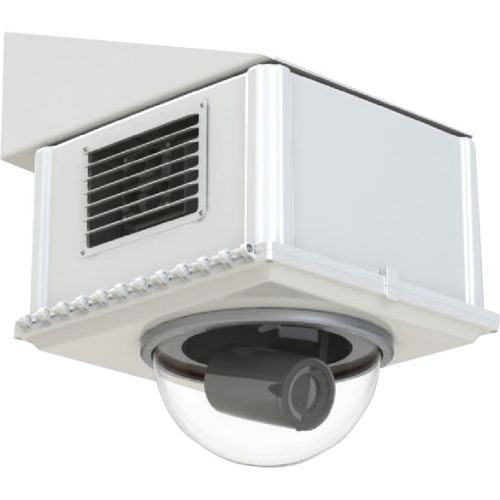

Panasonic Outdoor Enclosure with Active Cooling HD12-CD - 1 Fan(s) - 1 Heater(s) HD12-CD

Enable outdoor operation of the AW-HE130 and AW-HE120 series integrated PTZ cameras with the HD12-CD weather-proof enclosure with active cooling, allowing use in environments with ambient temperatures ranging up to 115 degrees Fahrenheit. The HD12-CD, when combined with the AW-HE130, is ideal for sports, weather-cam and other applications requiring broadcast quality video (and audio) acquisition in difficult or hostile environments. The camera is sold separately, and use of the AW-HE130KPJ or AW-HE120KPJ (black) model cameras is recommended to minimize internal reflections in difficult lighting conditions. The HD12-CD is manufactured and complies with IP66/NEMA 4X standards, providing excellent protection from water, dust, marine environments and vandal abuse. The HD12-CD provides 12VDC power for the camera and accessories, but the HE130 itself may also be powered from an external PoE+ switch or injector. When PoE+ is combined with the HE130''s H.264 streaming and IP-control capabilities, a revolutionary "single wire" solution is possible. The HD12-CD ships with a wall-mount/sunshade for the system, plus a compact weatherproof power supply (which must be mounted separately nearby.) Power conversion from AC standards to 12VDC input for HE130/HE120 and accessories 4 cable egress locations with various gland options for multiple reliably sealed connections Approximate Weight (w/o camera) 32lbs Dimensions (w/o Wall-mount/Sunscreen) 20"x22.3"x19.7" Din Rail internal mounting options for additional hardware and cable management Sealed from outside air, dust, water, insects, salt fog, and other conditions
