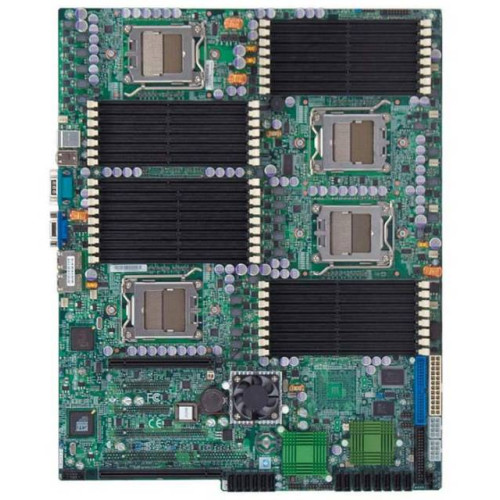

Supermicro H8QM3-2+-O Quad Socket F/ NVIDIA MCP55 Pro/ DDR2/ SAS/ V&2GbE/ Proprietary Server Motherboard

Specifications

• Mfr Part Number: H8QM3-2+-O
• CPU: Quad Socket F
  • Support up to four Six-Core/ Quad-Core/ Dual-Core AMD Opteron 8000 Series Processors
  • Support HyperTransport 3.0 Techonology
• Chipset: North Bridge NVIDIA MCP55 Pro & South Bridge NEC uPD720400
• Memory: 32x 240pin DDR2-800/ 667/ 533 DIMM Slots, Single or Dual Channel, ECC/REG, Max Capacity of 256GB
• Slots: 1x PCI-Express x16 Slot
• SAS: 8x SAS / SATA Ports, Support RAID 0, 1, 10
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 0+1, 5 and JBOD
• IDE: 1x EIDE Channel; Supports UDMA Mode 5, PIO Mode 4 and ATA 100/133
• Video: AMD ES1000 Graphics w/ 16MB Video Memory
• LAN: Intel 82546GB Dual Port Gigabit Ethernet Controller
• Ports: 4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports, 2x Serial Ports (1 rear, 1 via header), 1x Floppy Port
• Form Factor: Proprietary, 16.4 x 13.0 inch / 41.7 x 33.0 cm
• RoHS Compliant
