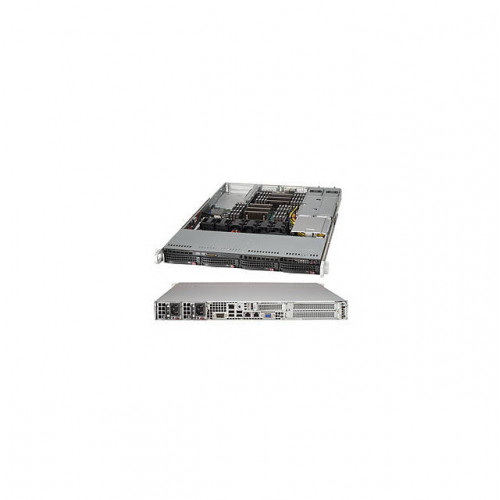

Supermicro SuperServer SYS-6018R-WTR Dual LGA2011 700W/750W 1U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6018R-WTR
• Motherboard: Super X10DRW-i
• Processors: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length), 1x PCI-Express 3.0 x8 Slot (Mezzanine for HBA cards)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Drive Bays: 4x 3.5" Hot-swap SAS/SATA HDD Trays (ready for PCI-E storage controller card)
• Backplane: SAS/SATA HDD Backplane
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 700W/ 750W Platinum Certified Redundant AC-DC high-efficiency Power Supply w/ PMBus and I2C
• System Cooling: 5x 4cm Counter-rotating PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset, UID
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
• Gross Weight: 36.0 lbs / 18.1 kg
• RoHS Compliant
