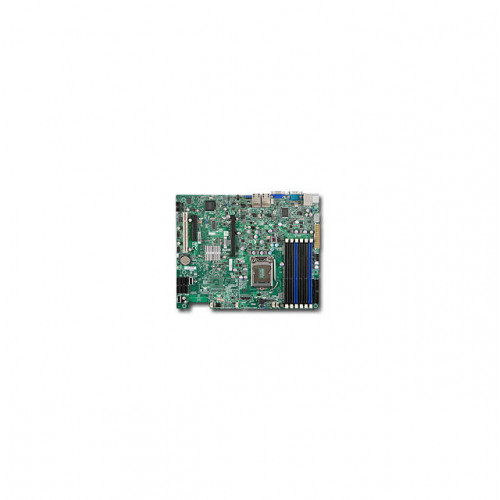

Supermicro X8SIE-LN4-B LGA1156/ Intel 3420/ DDR3/ V&4GbE/ ATX Server Motherboard

Specifications

• Mfr Part Number: X8SIE-LN4-B
• CPU: LGA1156
  • Supports Intel Xeon X3400/L3400 Series Processors
  • Supports Intel Core i3/ Pentium G6950/ Celeron G1101 Processors
• Chipset: Intel 3420
• Memory: 6x 240pin DDR3-1333/1066/800 DIMM Slots; Supports up to 32GB ECC/REG Memory or up to 16GB ECC Unbuffered Memory
• Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express x8 Slot (runs at x4), 1x 32-bit PCI Slot
• SATA: 6x SATA2 Ports; Support RAID 0, 1, 5, 10 (Windows); Support RAID 0, 1, 10 (Linux)
• Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory
• LAN: 4x Intel 82574L Gigabit Ethernet Controllers
• Ports: 8x USB 2.0 Ports (2 rear, 4 via headers, 2 on-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 4x RJ45 LAN Ports
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
• RoHS Compliant
