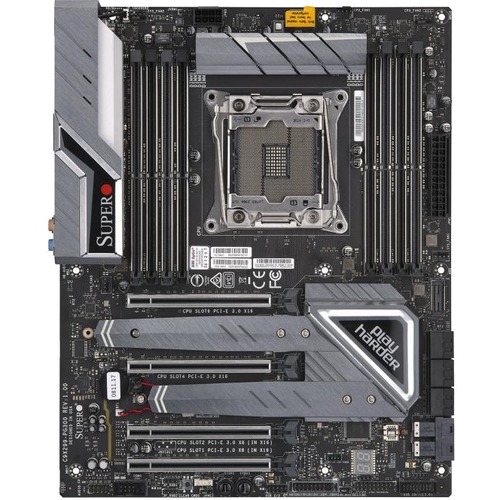

Supermicro C9X299-PG300 Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - 1 x Retail Pack - ATX - 1 x Processor Support - 128 GB DDR4 SDRAM Maximum RAM - 2.67 GHz, 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 8 x

Supermicro C9X299-PG300 Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - 1 x Retail Pack - ATX - 1 x Processor Support - 128 GB DDR4 SDRAM Maximum RAM - 2.67 GHz, 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 8 x Memory Slots - Intel Optane Memory Ready - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - 4 x USB 3.0 Port - Gigabit Ethernet - 10Gigabit Ethernet - 4 x PCI Express x16 Slots - 8 x USB Ports - 2 x M.2 Interfaces - 6 x

Core™ X-Series Processor Based MotherboardsX299 chipset / Socket R4 BoardsSupermicro''s new ATX form factor motherboards using Intel® X299 Express Chipset supports Intel® Core™ i9/i7/i5 X-Series Processors. The X299 new platform supports overclocking of CPU and Memory with increased performance, with SuperO Booster and Intel XTU/management tool. Ideal applications include workstation and high frequency trading.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: X299
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Core X-Series
Number of Memory Slots: 8
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: No
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

C9X299-PG300F Desktop Motherboard, 4 x SATA Cable, 1 x I/O Shield, 1 x Quick Reference Guide, 1 x Driver CD, 1 x Metal Badge, 1 x Cable Sticker

Compatibility:

Chassis (Optimized for C9X299-PG300):

SCGS5A-753K, SCGS5A-753R, SC732D3-1200B, SC732D3-903B

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
