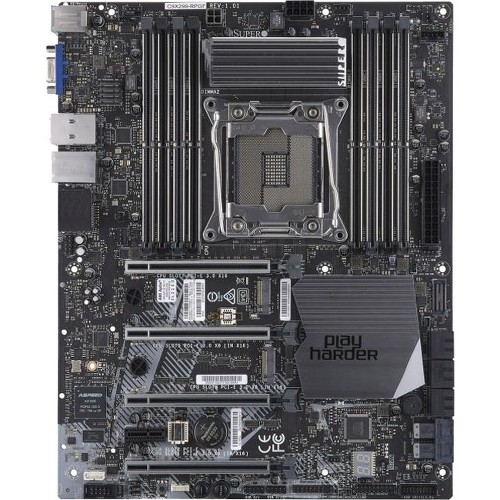

Supermicro C9X299-RPGF Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 4 x USB 3.1 Port - 6 x SATA Interfaces MBD-C9X299-RPGF-B

Supermicro C9X299-RPGF Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 4 x USB 3.1 Port - 6 x SATA Interfaces

Core™ X-Series Processor Based Motherboards X299 chipset / Socket R4 Boards Supermicro''s new ATX form factor motherboards using Intel® X299 Express Chipset supports Intel® Core™ i9/i7/i5 X-Series Processors. The X299 new platform supports overclocking of CPU and Memory with increased performance, with SuperO Booster and Intel XTU/management tool. Ideal applications include workstation and high frequency trading.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: X299
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Core X-Series
Number of Memory Slots: 8
Memory Form Factor: UDIMM, DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2666 MHz, 2400 MHz, 2133 MHz, 1600 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 4
VGA: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

C9X299-RPGF Desktop Motherboard, 1 x SATA cable, 1 x IO Shield

Compatibility:

Chassis:

SC732i-865B, SC732I-500B, SC743TQ-865B-SQ

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
