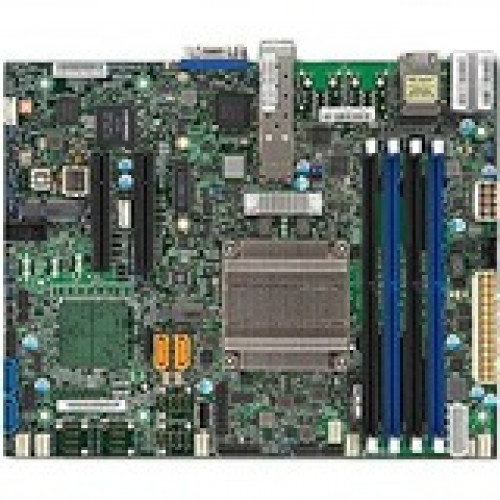

Supermicro X10SDV-2C-TP4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Pentium D1508 - 128 GB DDR4 SDRAM Maximum RAM - UDIMM, RDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 4 x SATA Interfaces
X10SDV Embedded Boards / Xeon D SoC BGA Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon®/Pentium® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon®/Pentium® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.
Technical Specifications:
Chipset Manufacturer: IntelProcessor Socket: Socket BGA-1667Integrated Processor Manufacturer: IntelIntegrated Processor Type: PentiumIntegrated Processor Model: D1508Integrated Processor Speed: 2.20 GHzIntegrated Processor Core: Dual-core (2 Core)Number of Memory Slots: 4Memory Form Factor: UDIMM, RDIMM, DIMMMaximum Memory Supported: 128 GBMemory Technology: DDR4 SDRAMMemory Speed Supported: 1866 MHz, 1600 MHzController Type: Serial ATA/600RAID Supported: YesRAID Levels: 10, 5, 1, 0Onboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Gigabit Ethernet: Yes10Gigabit Ethernet: YesNumber of Total Expansion Slots: 3Total Number of PCI Express Slots: 2Number of PCI Express x8 Slots: 2Total Number of USB Ports: 2Number of USB 3.0 Ports: 2VGA: YesNumber of SATA Interfaces: 4Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 5Form Factor: Flex ATXWidth: 9"Depth: 7.3"Compatibility:
Supermicro SuperServer Model(s): Supermicro SuperChassis(s):1U Chassis: SC504-203B, SC514-505, SC505-203B, SC515-R407, SC813MTQ-350CB
