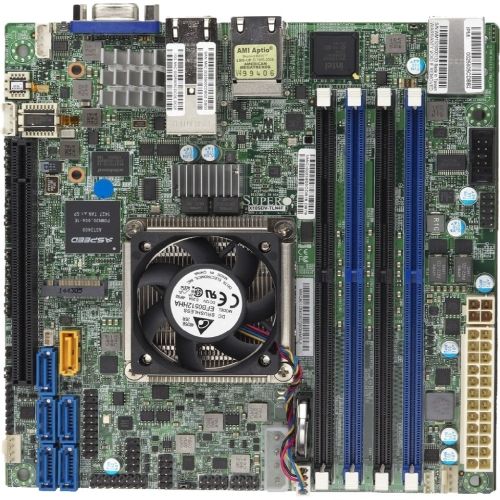

Supermicro X10SDV-8C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Xeon D-1541 - 164 GB DDR4 SDRAM Maximum RAM - DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800 - DIMM, RDIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet

Supermicro X10SDV-8C-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Xeon D-1541 - 164 GB DDR4 SDRAM Maximum RAM - DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800 - DIMM, RDIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 6 x SATA Interfaces

X10SDV Embedded Boards / Xeon D SoC BGASupermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® System-on a-Chip (SoC) D-1500 Family solutions. The X10SDV series offer infrastructure optimization, by combining the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. With server-class reliability, availability and serviceability (RAS) features now available in an ultra-dense, low-power device, the X10SDV will be able to deliver balanced compute, storage and intelligent edge networks and appliances. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family, with up to 128GB DDR4 ECC RDIMM operating at 2133MHz, USB 3.0 I/O, six SATA3.0 storage and dual 10 GbE LAN networking ports.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1667
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-1541
Integrated Processor Speed: 2.10 GHz
Integrated Processor Core: Octa-core (8 Core)
Number of Memory Slots: 4
Memory Form Factor: DIMM, RDIMM, UDIMM
Maximum Memory Supported: 164 GB
Memory Standard: DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Compatibility: Supermicro 1U Chassis:

SC504-203B, SC505-203B

Environmentally Friendly: Yes
Environmental Certification: RoHS
