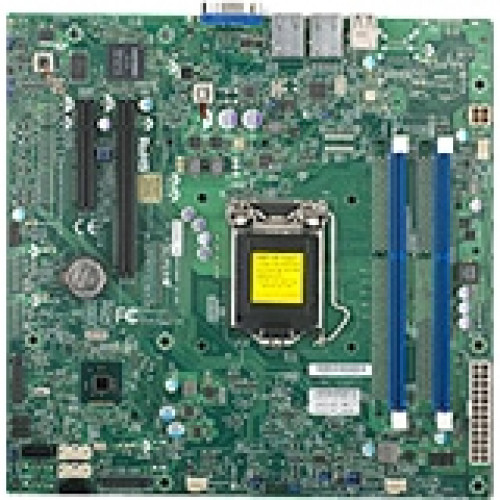

Supermicro X10SLL-S Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 4 x SATA Interfaces - RoHS-6 Compliance MBD-X10SLL-S-O

Supermicro X10SLL-S Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 4 x SATA Interfaces - RoHS-6 Compliance

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C222
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i3, Pentium, Celeron, Xeon
64-bit Processing: Yes
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 16 GB
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/600, Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST1200
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility:

CSE-113MTQ-330CB, CSE-113MTQ-R400CB, CSE-512F-350B, CSE-512F-441B, CSE-811TQ-441B, CSE-813MTQ-350C, CSE-813MTQ-441CB, CSE-813MTQ-R400B, CSE-732D4-903B, CSE-731i-300B, CSE-732D4-500B, CSE-732D4-865B, CSE-733TQ-500B, CSE-733TQ-665B

Certifications & Standards:

ACPI 5.0, CE, FCC

Environmentally Friendly: Yes
Environmental Certification: RoHS-6
