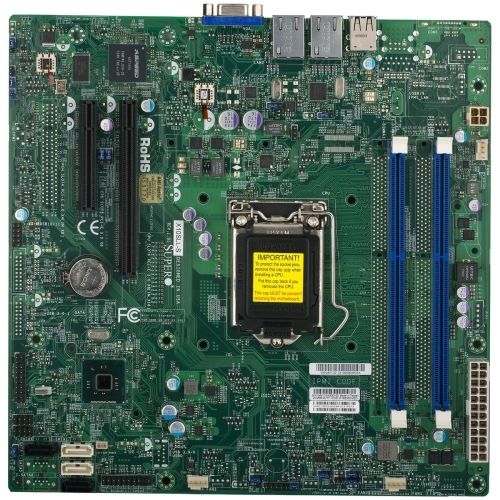

Supermicro X10SLL-SF Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 4 x SATA Interfaces MBD-X10SLL-SF-O

Supermicro X10SLL-SF Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 16 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 4 x SATA Interfaces

X10SLL-SFIntel® Xeon® processor E3-1200 v3 family, Intel® 4th Gen Core i3 processor (formerly codenamed Haswell); Socket H3 (LGA 1150) Up to 65W CPU supportIntel® C222 PCH Express ChipsetUp to 16GB DDR3 1600MHz ECC UDIMMs in 2 sockets2 SATA3 (6Gbps, RAID 0, 1) and 2 SATA2 (3Gbps, RAID 0, 1, 10, 5)1 (x8) PCI-E 3.0 in x16, 1 (x8) PCI-E 3.0 slotsVideo: Aspeed AST2400 (X10SLL-SF) / Aspeed AST1400 (X10SLL-S)4x USB 2.0 (2 rear, 2 via header)Dual GbE LAN ports (1x via Intel® i217LM + 1x via Intel® i210AT)Integrated IPMI 2.0 with KVM via LAN1 - shared (X10SLL-SF)SATA DOM power connector support; TPM 1.2 headerForm factor: uATX, 9.6" x 9.6"

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C222
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i3, Pentium, Celeron, Xeon
64-bit Processing: Yes
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 16 GB
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/600, Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Number of Onboard USB 2.0 Ports: 2
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility: Supermicro SuperChassis

Mid-Tower:
CSE-731i-300B, CSE-732D4-500B, CSE-732D4-865B, CSE-732D4-903B, CSE-733TQ-500B, CSE-733TQ-665B
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
