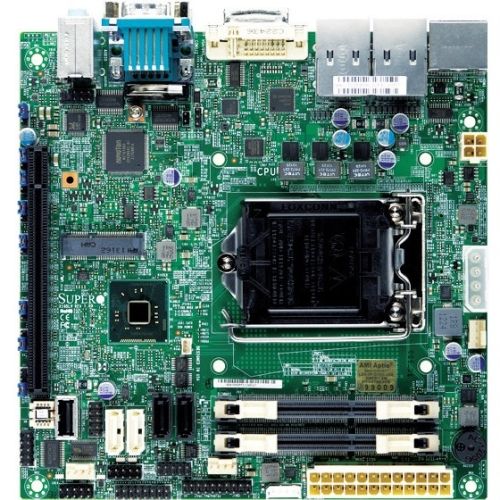

Supermicro X10SLV Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Bulk Pack - Mini ITX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Serial ATA/600, Serial ATA/300 Controller - CPU Dependent Video - 2 x US

Supermicro X10SLV Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Bulk Pack - Mini ITX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Serial ATA/600, Serial ATA/300 Controller - CPU Dependent Video - 2 x USB 3.0 Port - HDMI - Intel - 7.1 Audio Channels - Gigabit Ethernet - 1 x PCI Express x16 Slots - 4 x USB Ports - DisplayPort - DVI - 4 x SATA Interfaces

Z87, Q87 & H81 chipsets / Socket H3 BoardsSupermicro''s new ATX form factor motherboard model using Intel 8 series Express Chipset supports 4th generation Desktop Core i7/i5/i3 Processors, Pentium and Celeron. The Z87 new platform supports overclocking of CPU and Memory with increase of up to 10% in performance, with XTU management tool. Q87 and Z87 platforms supports triple displays and collage display and 4K HD resolution graphics. Other feature includes Dual BIOS capable for BIOS recovery and dual boot platforms.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H81
Total Processor Supported: 1
Processor Technology: vPro Technology
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i7, Core i5, Core i3, Pentium, Celeron
64-bit Processing: Yes
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 16 GB
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/600, Serial ATA/300
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC888S
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Number of Mini PCI Express Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
HDMI: Yes
Number of HDMI Outputs: 1
DisplayPort: Yes
Number of DisplayPort Outputs: 1
DVI: Yes
Number of DVI Outputs: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 3
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

X10SLV Desktop Motherboard, 1 x I/O Shield, 2 x I/O Cables

Compatibility: Supermicro SuperChassis

Mid/Mini Tower Chassis:

SC731D-300B

Mini-ITX Chassis:

SC101i

Supermicro SuperServer(s) Model: SYS-1018L-MP
Certifications & Standards: ACPI 5.0
