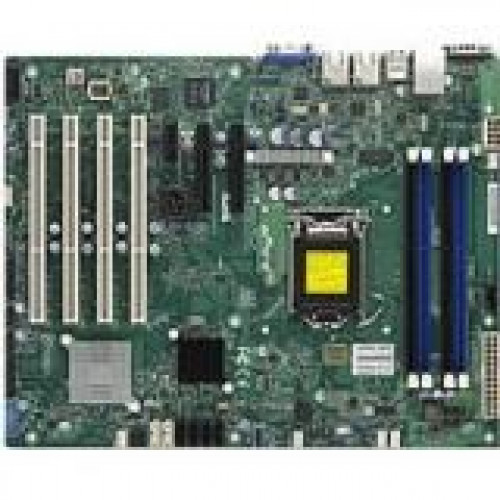

Supermicro X10SLX-F Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - Retail Pack - ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600, Serial ATA/300 RAID

Supermicro X10SLX-F Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - Retail Pack - ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600, Serial ATA/300 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - On-board Video Chipset - ASPEED - 7.1 Audio Channels - Gigabit Ethernet - 1 x PCI Express x1 Slots - 2 x PCI Express x8 Slots - 4 x USB Ports - VGA

Supermicro® UP Motherboards - Best Power & Performance with Improved I/OSupermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling. The best technologies require the best management tools and support. Supermicro customer services include 3-year limited warranty, 4-hour and 24-hour repair service options, Rack Solution and Integration Services, Global Logistics, and highest-availability Global SKUs. Advanced management tools such as onboard IPMI 2.0 remote management support and advanced power management tools make the Supermicro customer experience more efficient and cost-effective. With best performance, leadership I/O, focus on energy efficiency, and continued advancements in customer support and services, Supermicro new generation server solutions are the optimal solution for SMB, Enterprise, and Public Sector Cloud Computing, Hadoop, Big Data, Data Centers, HPC, Storage, and General Server needs.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C222
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Xeon
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz
Controller Type: Serial ATA/600, Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x8 Slots: 2
Total Number of USB Ports: 4
VGA: Yes
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
