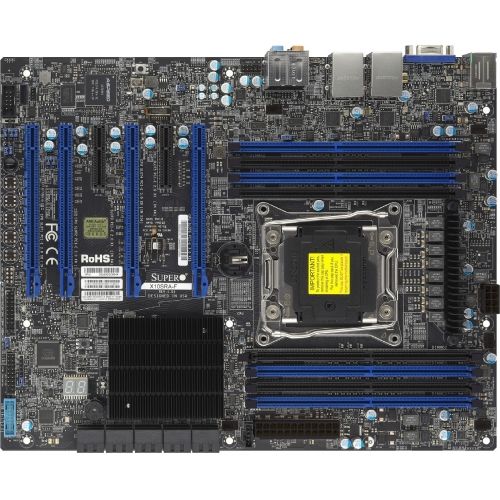

Supermicro X10SRA-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Retail Pack - ATX - 1 x Processor Support - 512 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - 8 x Memory Slots - Serial ATA/600 RAID Supported Controller - 8 x U

Supermicro X10SRA-F Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Retail Pack - ATX - 1 x Processor Support - 512 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - 8 x Memory Slots - Serial ATA/600 RAID Supported Controller - 8 x USB 3.0 Port - 7.1 Audio Channels - Gigabit Ethernet - 4 x PCI Express x16 Slots - 8 x USB Ports - 10 x SATA Interfaces

Xeon® E5 Family Boards / Socket R3 (LGA 2011) The new Supermicro''s X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro''s first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 1
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon, Core i7
64-bit Processing: Yes
Number of Memory Slots: 8
Memory Form Factor: DIMM, RDIMM, LRDIMM, UDIMM
Maximum Memory Supported: 512 GB
Memory Standard: DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: No
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC1150
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 6
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 8
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
PS/2 Port: Yes
Number of PS/2 Ports: 1
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.0 Ports: 4
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Form Factor: ATX
Width: 12"
Depth: 9.6"
Compatibility: Supermicro SuperChassis

4U / Tower Chassis:
SC743TQ-1200B-SQ
Certifications & Standards: ACPI 4.0
Environmentally Friendly: Yes
Environmental Certification: RoHS
