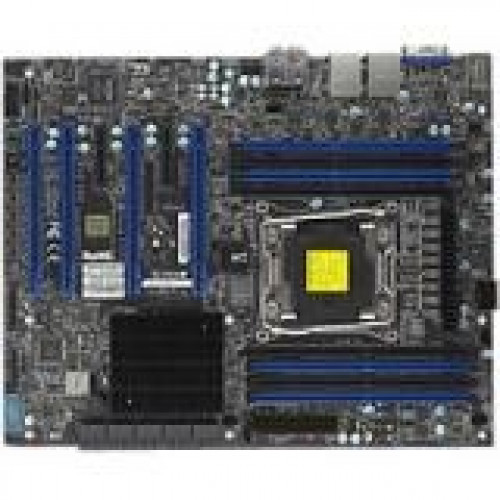

Supermicro X10SRA Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Bulk Pack - ATX - 1 x Processor Support - 512 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, RDIMM, LRDIMM, UDIMM - 8 x Memory Slots - Ser

Supermicro X10SRA Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - Bulk Pack - ATX - 1 x Processor Support - 512 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, RDIMM, LRDIMM, UDIMM - 8 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - 6 x USB 3.0 Port - 7.1 Audio Channels - Gigabit Ethernet - 2 x PCI Express x1 Slots - 4 x PCI Express x16 Slots - 6 x USB Ports - 10 x SATA Interfaces

Xeon® E5 Family Boards / Socket R3 (LGA 2011) The new Supermicro''s X10 UP Serverboards offer the latest Xeon E5-2600/1600 v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro''s first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 1
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon, Core i7
Number of Memory Slots: 8
Memory Form Factor: DIMM, RDIMM, LRDIMM, UDIMM
Maximum Memory Supported: 512 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: No
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 2
Number of Onboard USB 3.0 Ports: 2
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

X10SRA Server Motherboard, 1 x Quick Reference Guide

Compatibility: Supermicro SuperChassis

4U / Tower Chassis:
SC743TQ-1200B-SQ

SuperServer(s) Model:
SYS-5038A-I
Environmentally Friendly: Yes
Environmental Certification: RoHS
