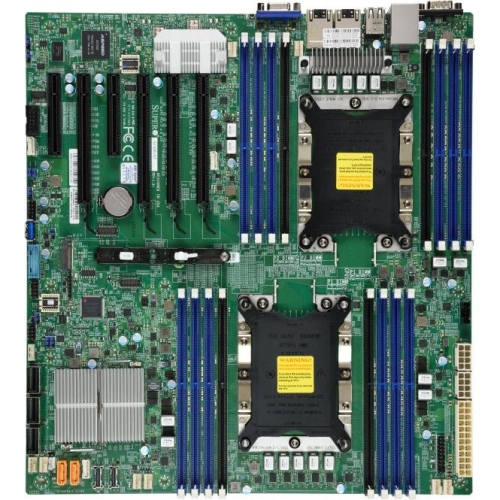

Supermicro X11DPI-N Server Motherboard - Intel Chipset - Socket P LGA-3647 - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 16 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 14 x SATA Interfaces - TAA Compliance MBD-X11DPI-N-O

Supermicro X11DPI-N Server Motherboard - Intel Chipset - Socket P LGA-3647 - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 16 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 14 x SATA Interfaces - TAA Compliance

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro''s new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 16
Memory Form Factor: RDIMM, DIMM, LRDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 14
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.0 Ports: 3
Number of NVMe Ports: 2
Form Factor: Extended ATX
Width: 13"
Depth: 12"
Compatibility:

SuperServer:

SYS-6029P-TR, SYS-7049P-TR, SYS-2029P-C1R

Chassis:

SC745BAC-R1K28B2, 213AC-R1K23LPB, 825TQC-R1K03LPB
