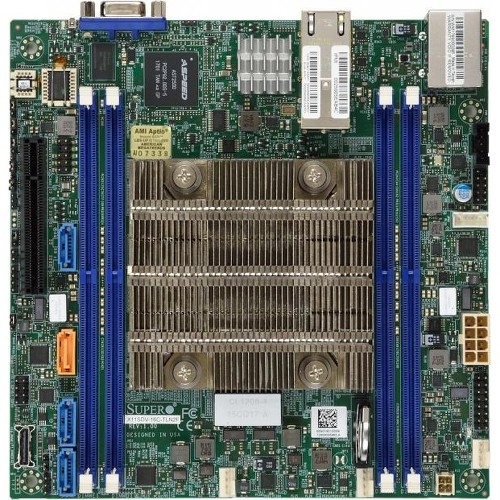

Supermicro X11SDV-4C-TLN2F Server Motherboard - Intel Xeon D-2123IT - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - 2 x USB 3.0 Port - 8 x SATA Interfaces MBD-X11SDV-4C-TLN2F-B

Supermicro X11SDV-4C-TLN2F Server Motherboard - Intel Xeon D-2123IT - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - 2 x USB 3.0 Port - 8 x SATA Interfaces

SUPERMICRO X11SDV-4C-TLN2F - Motherboard - mini ITX - Intel Xeon D-2123IT - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics

Technical Specifications:
Total Processor Supported: 1
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-2123IT
Integrated Processor Speed: 2.20 GHz
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 4
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 512 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 2
Form Factor: Mini ITX
Width: 6.8"
Depth: 6.8"
Package Contents:

X11SDV-4C-TLN2F Server Motherboard, 2 x SATA Cables, 1 x ATX Power Cable, 1 x I/O Shield

Environmentally Friendly: Yes
Environmental Certification: RoHS
