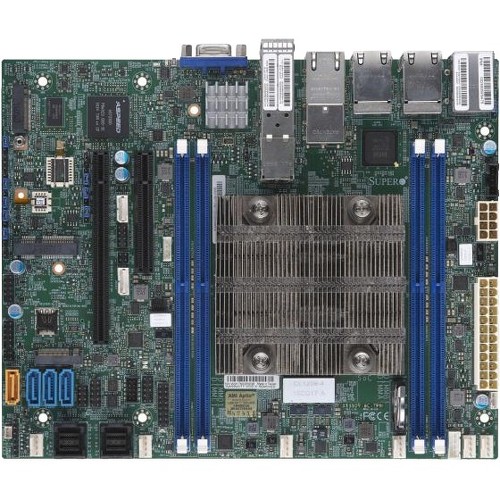

Supermicro X11SDV-8C-TP8F Server Motherboard - Intel Xeon D-2146NT - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 12 x SATA Interfaces MBD-X11SDV-8C-TP8F-O

Supermicro X11SDV-8C-TP8F Server Motherboard - Intel Xeon D-2146NT - 512 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 12 x SATA Interfaces

Supermicro Solutions based on Intel® Xeon®-D processors Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on-a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications. These advanced technology building blocks offer the best work load optimized solutions and long life availability with the Intel® Xeon® processor D family including: Up to 16 cores providing up to 3x performance improvement Up to: 512GB ECC DDR4 LRDIMM operating at 2666MHz PCI-E 3.0 x16 and PCI-E 3.0 x8 slots, USB 3.0 I/O 12 SATA 3.0 storage ports Quad 10 GbE plus quad GbE LAN networking IPMI 2.0 8-pin 12V DC or ATX power source 7 years product life

Technical Specifications:
Total Processor Supported: 1
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-2146NT
Integrated Processor Speed: 2.30 GHz
Integrated Processor Core: Octa-core (8 Core)
Number of Memory Slots: 4
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 512 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 12
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 2
Form Factor: Flex ATX
Width: 9"
Depth: 7.3"
Compatibility:

Server:

SYS-5019D-FN8TP, SSG-5019D8-TR12P

Environmentally Friendly: Yes
Environmental Certification: RoHS
