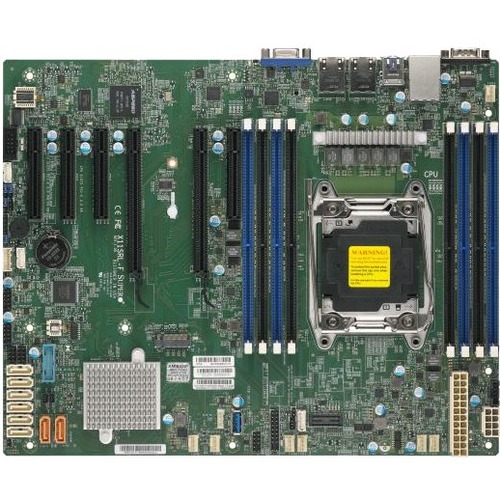

Supermicro X11SRL-F Server Motherboard - Intel Chipset - Socket R4 LGA-2066 - 512 GB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x RJ-45 - 8 x SATA Interfaces MBD-X11SRL-F-B

Supermicro X11SRL-F Server Motherboard - Intel Chipset - Socket R4 LGA-2066 - 512 GB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x RJ-45 - 8 x SATA Interfaces

SUPERMICRO X11SRL-F - Motherboard - ATX - LGA2066 Socket - C422 - USB 3.0 - 2 x Gigabit LAN - onboard graphics

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C422
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Xeon
Number of Memory Slots: 8
Memory Form Factor: DIMM, RDIMM, LRDIMM
Maximum Memory Supported: 512 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 4
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 3
Form Factor: ATX
Width: 12"
Depth: 9.6"
Compatibility:

Chassis

825TQC-R740LPB, 825TQC-600LPB, LA25TQC-R609LP, LA26E1C4-R609LP
