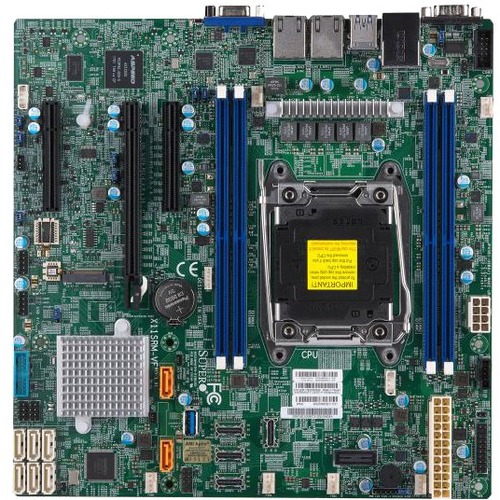

Supermicro X11SRM-VF Server Motherboard - Intel Chipset - Socket R4 LGA-2066 - 256 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 8 x SATA Interfaces - TAA Compliance MBD-X11SRM-VF-O

Supermicro X11SRM-VF Server Motherboard - Intel Chipset - Socket R4 LGA-2066 - 256 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 8 x SATA Interfaces - TAA Compliance

UP Xeon® Motherboards - Socket R4 (LGA 2066) BOARDS supporting Intel® Xeon® W Processors / Socket R4 (LGA 2066) Supermicro''s single processor Socket R4 design features the Intel® C422 chipset and the Intel® Xeon® W processor. The outstanding features include DDR4 ECC RDIMM/LRDIMM memory, onboard OCuLink connectors for Intel Virtual RAID on Chip (VROC) support, PCI-E 3.0, M.2 and SATA 3.0 (6Gbps) HDD/SSD, 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN. Designed with performance, reliability, and manageability, Supermicro''s single processor motherboards are the perfect solution for a variety of server and workstation applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C422
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Xeon
Number of Memory Slots: 4
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 256 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility:

SuperChassis:

SC813MFTQC-R407CB, SC514-R407C, SC515-R407
