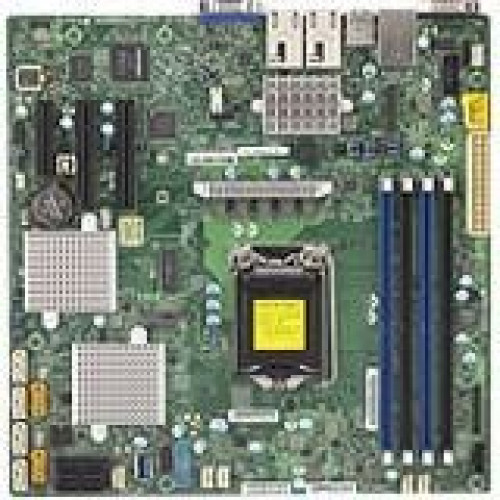

Supermicro X11SSH-CTF Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Retail Pack - Micro ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial

Supermicro X11SSH-CTF Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - Retail Pack - Micro ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 2 x PCI Express x4 Slots - 1 x PCI Express x8 Slots - 4 x USB Ports - VGA - 8 x SATA Interfaces

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151) Supermicro''s single processor Socket H4 designs feature the Intel® C236/C232 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Celeron, Pentium, Xeon
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x4 Slots: 2
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 8
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility: Supermicro SuperChassis

1U Chassis:

SC813MFTQC-505CB, SC113MFAC2-341CB, SC113MFAC2-R606CB, SC813MFTQ-R400CB, SC512F-350B, SC813MTQ-350CB, SC813MFTQC-350CB

2U Chassis:

SC213LT-600LPB, SC825TQ-R720LPB, SC823TQ-653LPB

3U Chassis:

SC833T-653B

Mid/Mini Tower Chassis:

SC732I-500B, SC731i-300B

4U / Tower Chassis:

SC842TQ-665B, SC842i-500B
