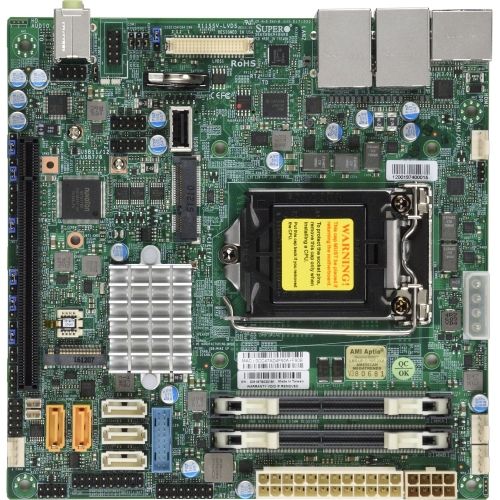

Supermicro X11SSV-LVDS Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Retail Pack - Mini ITX - 1 x Processor Support - 32 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 2.13 GHz, 1.60 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial A

Supermicro X11SSV-LVDS Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - 1 x Retail Pack - Mini ITX - 1 x Processor Support - 32 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 2.13 GHz, 1.60 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - CPU Dependent Video - 4 x USB 3.0 Port - HDMI - Intel HD Graphics - Gigabit Ethernet - 1 x PCI Express x16 Slots - 4 x USB Ports - DisplayPort - 5 x SATA Interfaces

Q170/H110 chipset / Socket H4 Boards Supermicro''s single processor Socket H4 designs feature the Intel® Q170/H110 embedded chipset which support the Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro''s single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q170
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7, Core i3, Core i5, Pentium, Celeron
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 1866 MHz, 2133 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD Graphics
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 5
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.0 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

X11SSV-LVDS Server Motherboard, 1 x QRG, 4 x I/O Cables , 1 x I/O Shield

Compatibility: Supermicro SuperChassis:

Mid/Mini-Tower

SC721TQ-250B, SC731i-300B

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
