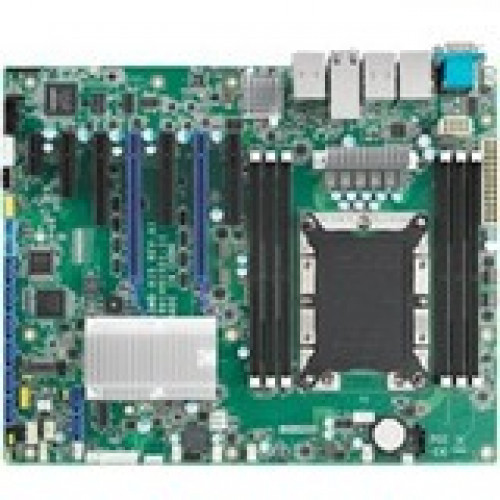

Advantech ASMB-815 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 384 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM - 6 x Memory Slots - 4 x USB 3.0 Port - 5 x RJ-45 - 8 x SATA Interfaces ASMB-815T2-00A1E

Advantech ASMB-815 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 384 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM - 6 x Memory Slots - 4 x USB 3.0 Port - 5 x RJ-45 - 8 x SATA Interfaces

SINGLE BOARD COMPUTER LGA3467

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C622
Total Processor Supported: 1
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 6
Memory Form Factor: RDIMM, DIMM
Maximum Memory Supported: 384 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2133 MHz, 2400 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 4
VGA: Yes
DVI: No
Number of Network (RJ-45) Ports: 5
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 5
Number of Onboard USB 3.0 Ports: 2
Onboard S/PDIF Header: No
Form Factor: ATX
Width: 12"
Depth: 9.6"
Weight (Approximate): 2.01 lb
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country of Origin: Taiwan
