Advantech IDS-3118WP-30HDA1E 18.5" Open-frame LCD Touchscreen Monitor - 5 ms - Projected Capacitive - 1366 x 768 - HD - 16.7 Million Colors - 300 Nit - LED Backlight - DVI - HDMI - USB - VGA - RoHS - 2 Year IDS-3118WP-30HDA1E

Advantech IDS-3118WP-30HDA1E 18.5" Open-frame LCD Touchscreen Monitor - 5 ms - Projected Capacitive - 1366 x 768 - HD - 16.7 Million Colors - 300 Nit - LED Backlight - DVI - HDMI - USB - VGA - RoHS - 2 Year

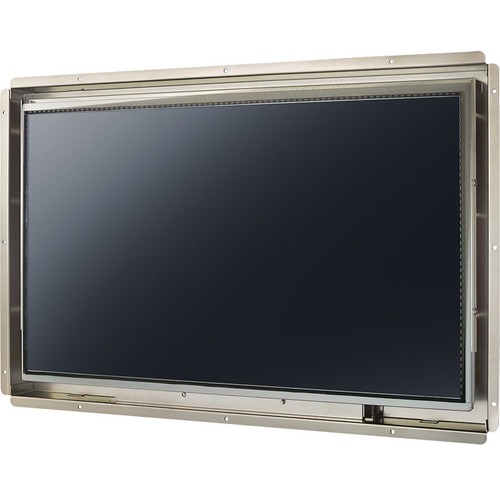

The Advantech IDS-3118W Open Frame Monitor Series offer ultra slim design supporting a 18.5" 1366 x 768 pixels TFT LCD screen, with 0 ~ 55° C operating temperature, and optional resistive and projective capacitive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.

Technical Specifications:
Screen Size Class: 19"
Viewable Screen Size: 18.5"
Screen Mode: HD
Response Time: 5 ms
Mount Type: Rear Mount
Backlight Technology: LED
Maximum Resolution: 1366 x 768
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 300 Nit
Touchscreen Type: Projected Capacitive
DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 1
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 12"
Width: 18.8"
Depth: 1.4"
Weight (Approximate): 10.36 lb
Package Contents:

IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor, 1 x M Cable USB-A(M)/USB-A(M) 180CM, 1 x VGA cable 15P(M) 1.8 meter, 8 x Clamper, 8 x Screw of clamper M4_25L, 1 x Cable clamp, 1 x Screw of cable clamp, 1 x cable tie

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
