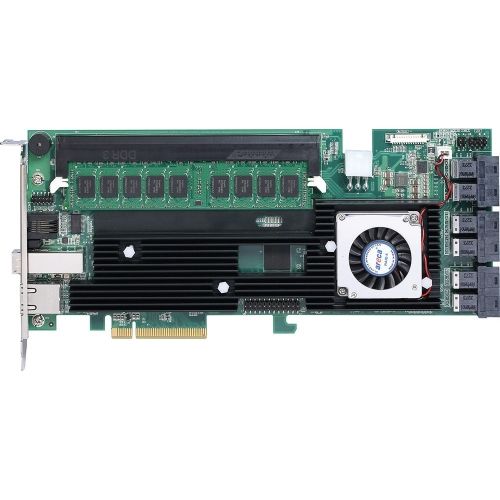

Areca PCIe 3.0 12Gb/s SAS RAID Controller - 6Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 1, 10E, 3, 5, 6, 30, 50, 60, JBOD RAID Level - 28 Total SAS Port(s) - 24 SAS Port(s) Internal - 4 SAS Port(s) External - Linux, PC, Mac - 2 GB Flash Backed Cache
The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port.
Technical Specifications:
Host Interface: PCI Express 3.0 x8Controller Type: 12Gb/s SASRAID Supported: YesRAID Levels: 0, 1, 10E, 3, 5, 6, 30, 50, 60, JBODData Backup Type: Flash Backed CacheCache Memory: 2 GBTotal Number of SAS Ports: 28Number of SAS Ports (Internal): 24Number of SAS Ports (External): 4SAS Connector Details: 6 x SFF-8643, 1 x SFF-8644Height: 3.9"Depth: 10"Form Factor: Plug-in CardPlatform Supported: Linux, PC, MacEnvironmentally Friendly: YesEnvironmental Certification: RoHS
