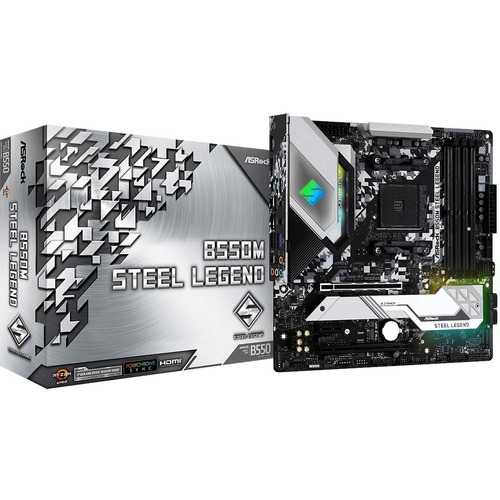

ASRock B550M Steel Legend Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces B550M STEEL LEGEND

ASRock B550M Steel Legend Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 6 x SATA Interfaces

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Hi-Density Power Connector Reduces 23% power loss and decreases the connector''s temperature by 22 degrees Celsius.8+4 12V Power Connectors24-pin ATX Power Connector 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it''s able to support the latest DDR4 memory modules with most extreme memory performance! RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you''ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. A SOLID M.2-SOLUTION PERFORMER Dual M.2 For SSD, Supports Type 22110 M.2Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode. M.2 ArmorsGood M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:? Extra anchor points? Stronger latch? Ensure signal stability? Make sure heavy graphics cards to be well-installed. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4733 MHz, 4666 MHz, 4600 MHz, 2667 MHz, 3200 MHz, 2933 MHz, 2400 MHz, 2133 MHz, 4533 MHz, 4466 MHz, 4333 MHz, 4200 MHz, 3800 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 10, 1
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 4
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Brand Compatibility: AMD
