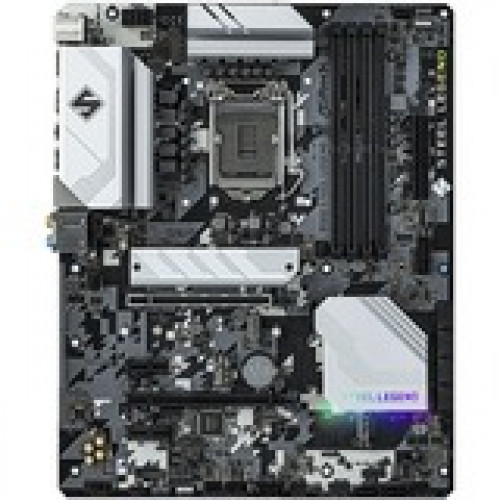

ASRock B560 Steel Legend Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slo

ASRock B560 Steel Legend Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors 10 Phase Dr.MOS Power Design Supports DDR4 4800MHz (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s), 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front) Dragon 2.5 Gigabit LAN Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Style In Details | Featuring sturdy components as well as more elaborately styled pieces Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Premium 60A Power Choke Compared to traditional chokes, ASRock''s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. 10 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock''s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. 6 Layer PCB The 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it''s able to support the latest DDR4 memory modules with most extreme memory performance! PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: B560
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4800 MHz, 4666 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 3
Product Color: Matte Black
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: Intel
