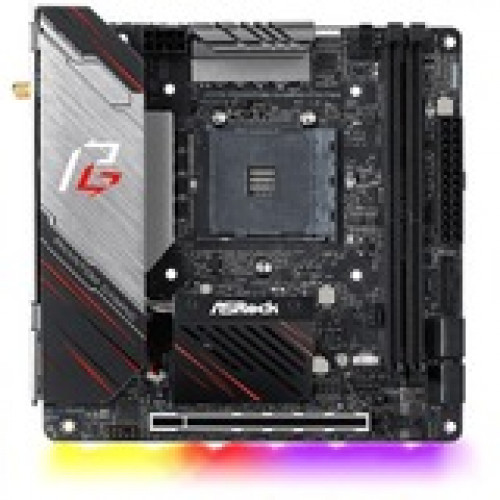

ASRock X570 PHANTOM GAMING-ITX/TB3 Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11 a/b/g/n/ax - 5 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA I

ASRock X570 PHANTOM GAMING-ITX/TB3 Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11 a/b/g/n/ax - 5 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfaces

Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0 Intel® Gigabit LAN Supports DDR4 4533+ (OC) 1 PCIe 4.0 x16 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) Supports Creative Sound Blaster™ Cinema 5 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4) 3 USB 3.2 Gen2 (2 Rear Type A), 4 USB 3.2 Gen1 (2 Front, 2 Rear) 1 Thunderbolt™ 3 Type-C ASRock Polychrome SYNC REVOLUTIONARY X570 MOTHERBOARDS:Your PC TransformedStyle . More reliable. Design that delivers. 10 POWER PHASE DESIGN Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It''s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Thunderbolt™ 3 Technology Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with 5V@3A (15W). Just experience the world''s fastest connectivity with Thunderbolt™ ready motherboards! Wi-Fi 6 802.11ax Welcome to the new Wi-Fi standard! ASRock''s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. ECC Memory Support ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. It''s mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers. STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0 The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock''s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. LGA 115X Mounting hole A special design that uses Intel® LGA 115X mounting holes instead of AMD retention bracket.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: X570
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4533 MHz, 4400 MHz, 4300 MHz, 4266 MHz, 4200 MHz, 4133 MHz, 3466 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 5
Number of USB 3.2 Ports: 5
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
