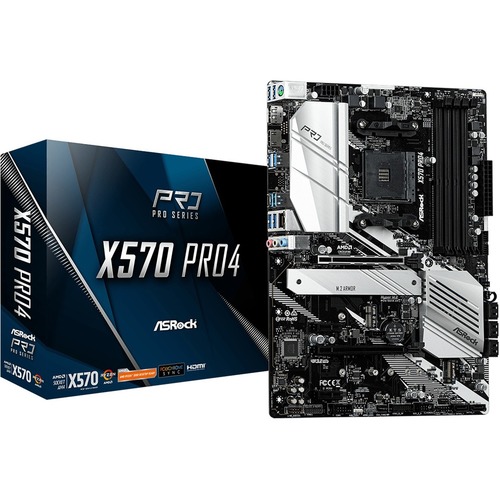

ASRock X570 PRO4 Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - 8 x USB 3.1 Port - HDMI - 1 x RJ-45 - 8 x SATA Interfaces X570 PRO4

ASRock X570 PRO4 Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - Gigabit Ethernet - 8 x USB 3.1 Port - HDMI - 1 x RJ-45 - 8 x SATA Interfaces

Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors 10 Power Phase Design Supports DDR4 4066+ (OC) 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi AMD Quad CrossFireX™ and CrossFireX™ Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4) 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear) Intel® Gigabit LAN ASRock Polychrome SYNC REVOLUTIONARY X570 MOTHERBOARDS:Your PC TransformedStyle . More reliable. Design that delivers. STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0 The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock''s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Dual Hyper M.2 For SSD Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Full Coverage M.2 Heatsink A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. 10 POWER PHASE DESIGN Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Intel® LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! ECC Memory Support ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. It''s mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers. XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. Premium 50A Power Choke Compared to traditional chokes, ASRock''s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: X570
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 3 PRO, Ryzen 5, Ryzen 5 PRO, Ryzen 7, Ryzen 7 PRO, Ryzen 9
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4066 MHz, 4000 MHz, 3866 MHz, 3800 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 3.2 Ports: 8
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9"
Package Contents:

X570 PRO4 Desktop Motherboard, Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets, 1 x Standoff for M.2 Socket, Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Environmentally Friendly: Yes
Environmental Certification: ErP/EuP Ready, WEEE, RoHS, China RoHS
